Simplifying AWS EKS Pod Identity: A Step-by-Step Guide to Secure Cloud Access

Introduction to EKS Pod Identity​

In Kubernetes, workloads often need to interact with AWS services like S3, DynamoDB, or RDS. Traditionally, granting pods access to AWS resources involved complex IAM role management or third-party solutions like kiam or kube2iam. AWS introduced IAM Roles for Service Accounts (IRSA) to simplify this, but it still required manual certificate management and role trust policies.

Enter EKS Pod Identity—a game-changer announced in late 2023. This feature streamlines assigning IAM roles directly to Kubernetes service accounts, eliminating the need for manual OIDC provider configuration or role session tagging. In this guide, we'll explore why Pod Identity matters, how to set it up, and deploy a sample app to demonstrate its power.

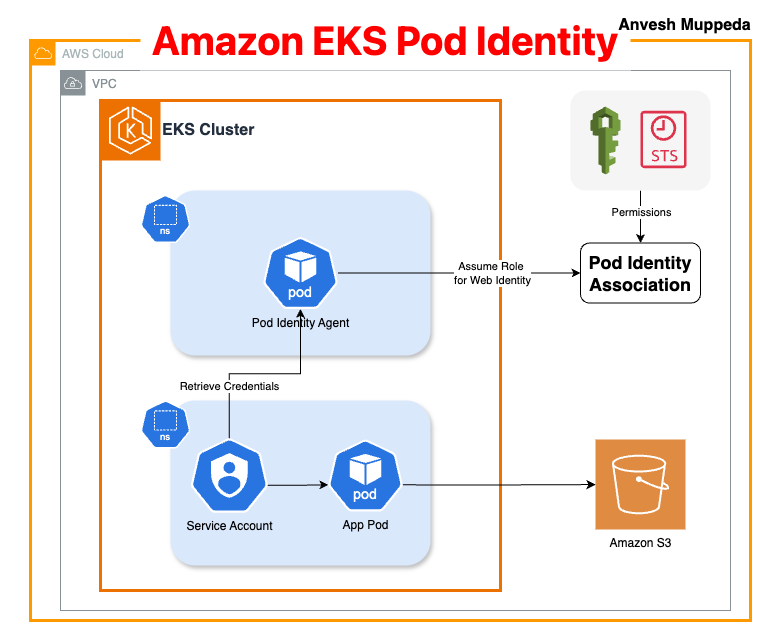

EKS Pod Identity Architecture

Why EKS Pod Identity?​

The Problem with IRSA​

IRSA required:

  1. Configuring an OIDC provider for your cluster.
  2. Managing role trust policies with complex conditional statements.
  3. Injecting temporary credentials via projected volumes, which could be over-permissioned if pods were compromised.

Benefits of Pod Identity​

  • Simplified Setup: No OIDC provider or manual trust relationships.
  • Enhanced Security: Credentials are ephemeral and rotated every hour.
  • Scalability: Associate one IAM role with multiple service accounts across namespaces/clusters.

Prerequisites​

  • AWS CLI v2 installed.
  • kubectl and eksctl configured.
  • Basic understanding of EKS and Kubernetes concepts.

Step 1: Create an EKS Cluster​

Option 1: Using eksctl​

Save this as cluster.yaml:

apiVersion: eksctl.io/v1alpha5
kind: ClusterConfig
metadata:
  name: eks-pod-identity-demo
  region: us-west-2
  version: "1.28"
addons:
  - name: vpc-cni
  - name: coredns
  - name: kube-proxy
  - name: eks-pod-identity-agent  # Critical for Pod Identity
managedNodeGroups:
  - name: eks-shared-demo-mng
    instanceType: t3.medium
    privateNetworking: true
    minSize: 2
    desiredCapacity: 2
    maxSize: 5

Create the cluster:

eksctl create cluster -f cluster.yaml

Option 2: Using CloudFormation​

Use the template eks-pod-identity.yaml.
This CloudFormation Template (CFT):

  1. Creates the EKS cluster with the eks-pod-identity-agent addon.
  2. Provisions an IAM role with the correct trust relationship for Pod Identity.
  3. Sets up a Pod Identity association for:
    • Namespace: demo-ns
    • Service Account: demo-sa
    • IAM Role: AmazonS3ReadOnlyAccess

To modify namespaces/service accounts:
Edit the EKSPodIdentityAssociation resource in the CFT:

EKSPodIdentityAssociation:
  Type: AWS::EKS::PodIdentityAssociation
  Properties:
    ClusterName: !Ref ClusterName
    Namespace: "demo-ns"  # ← Change this
    ServiceAccount: "demo-sa"  # ← Change this
    RoleArn: !GetAtt PodIdentityRole.Arn

Step 2: Verify Pod Identity Agent​

Ensure the agent pods are running:

kubectl get pods -n kube-system \
  --selector app.kubernetes.io/name=eks-pod-identity-agent

Output:

NAME                           READY   STATUS    RESTARTS   AGE
eks-pod-identity-agent-vkdmm   1/1     Running   0          31m
eks-pod-identity-agent-wt6m6   1/1     Running   0          31m

IMPORTANT:

  • If you used CloudFormation (Option 2), skip to Step 5.
  • If you used eksctl (Option 1), proceed to Step 3.

Step 3: Create an IAM Role (Skip if Using CFT)​

Trust Policy​

Save as eks-pod-identity-trust-policy.json:

{
    "Version": "2012-10-17",
    "Statement": [{
        "Effect": "Allow",
        "Principal": { "Service": "pods.eks.amazonaws.com" },
        "Action": ["sts:AssumeRole", "sts:TagSession"]
    }]
}

Create the role and attach the S3 read-only policy:

# Create role
export POD_ROLE_ARN=$(aws iam create-role \
  --role-name s3-app-eks-pod-identity-role \
  --assume-role-policy-document file://eks-pod-identity-trust-policy.json \
  --output text --query 'Role.Arn')

# Attach policy
aws iam attach-role-policy \
  --role-name s3-app-eks-pod-identity-role \
  --policy-arn arn:aws:iam::aws:policy/AmazonS3ReadOnlyAccess

Step 4: Associate the Role with EKS (Skip if Using CFT)​

Replace $CLUSTER_NAME and $AWS_REGION with your values:

aws eks create-pod-identity-association \
  --cluster-name $CLUSTER_NAME \
  --namespace demo-ns \
  --service-account demo-sa \
  --role-arn $POD_ROLE_ARN \
  --region $AWS_REGION

Step 5: Deploy the Demo Application​

Save as demo-app.yaml:

apiVersion: v1
kind: Namespace
metadata:
  name: demo-ns
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: demo-sa
  namespace: demo-ns
  annotations:
    # Optional: Add if using IRSA for migration
    eks.amazonaws.com/role-arn: $POD_ROLE_ARN
automountServiceAccountToken: false  # Security best practice
---
apiVersion: apps/v1
kind: Deployment
metadata:
  labels:
    app: awscli-app
  name: awscli-app
  namespace: demo-ns
spec:
  replicas: 2
  selector:
    matchLabels:
      app: awscli-app
  template:
    metadata:
      labels:
        app: awscli-app
    spec:
      serviceAccountName: demo-sa
      containers:
      - name: aws-cli-app
        image: amazon/aws-cli:latest
        securityContext:
          runAsNonRoot: true
          allowPrivilegeEscalation: false
          runAsUser: 1
        command: ["sleep", "infinity"]

Apply the manifest:

kubectl apply -f demo-app.yaml

Step 6: Test AWS Access​

Exec into a pod and verify permissions:

kubectl exec -it -n demo-ns awscli-app-78c6cf97f4-qj7xm -- sh

# 1. List S3 buckets (should succeed)
sh-4.2$ aws s3 ls

# 2. Check assumed role
sh-4.2$ aws sts get-caller-identity
{
    "UserId": "AROA6GBMDR6242KGGAMZP:eks-...",
    "Account": "975050084277",
    "Arn": "arn:aws:sts::975050084277:assumed-role/s3-app-eks-pod-identity-role/..."
}

# 3. Attempt to create a bucket (should FAIL)
sh-4.2$ aws s3 mb s3://my-test-bucket-$(date +%s)
An error occurred (AccessDenied) when calling the CreateBucket operation: Access Denied

Key Takeaways​

  1. Seamless Integration: Pod Identity removes the friction of OIDC setup.
  2. Unified Role Management: Use one IAM role across multiple clusters/namespaces.
  3. Security First: Ephemeral credentials reduce blast radius compared to IRSA.
  4. Least Privilege: The read-only access test confirms our role restrictions work.

Cleanup​

# Delete association (if not using CFT)
aws eks delete-pod-identity-association \
  --cluster-name $CLUSTER_NAME \
  --association-id <ID>

# Delete role (if not using CFT)
aws iam delete-role --role-name s3-app-eks-pod-identity-role

# Delete cluster
eksctl delete cluster --name eks-pod-identity-demo

Conclusion​

EKS Pod Identity simplifies secure access to AWS services from Kubernetes pods while adhering to least-privilege principles. By following this guide, you've learned how to:

  • Set up a cluster with the Pod Identity agent (via both eksctl and CloudFormation).
  • Create and associate IAM roles with service accounts.
  • Validate read-only access through success/failure tests.

The failed bucket creation attempt proves our security model works as intended. For production, combine this with IAM Conditions (e.g., eks:SourceNamespace) for granular access control.

Happy deploying!
