Introduction​

The Kubernetes Gateway API represents the next evolution of ingress traffic management in Kubernetes. Unlike the traditional Ingress resource, Gateway API provides a more expressive, extensible, and role-oriented approach to configuring network traffic routing.

In this hands-on guide, we'll explore the Gateway API by building a complete traffic management solution using Traefik as our gateway controller. You'll learn how to implement different routing strategies including hostname-based routing, path-based routing, and URL rewriting.

What You'll Learn​

By the end of this tutorial, you'll understand:

  • Gateway API architecture and core concepts
  • Setting up Traefik as a Gateway Controller
  • Creating GatewayClass and Gateway resources
  • Implementing HTTPRoute for different routing scenarios
  • Hostname-based and path-based traffic routing
  • URL rewriting and traffic filtering

Prerequisites​

Before we begin, ensure you have:

  • A running Kubernetes cluster (we'll use kind for this tutorial - follow our kind setup guide)
  • kubectl configured to access your cluster
  • helm package manager installed
  • Basic understanding of Kubernetes concepts (Pods, Services, Deployments)

Architecture Overview​

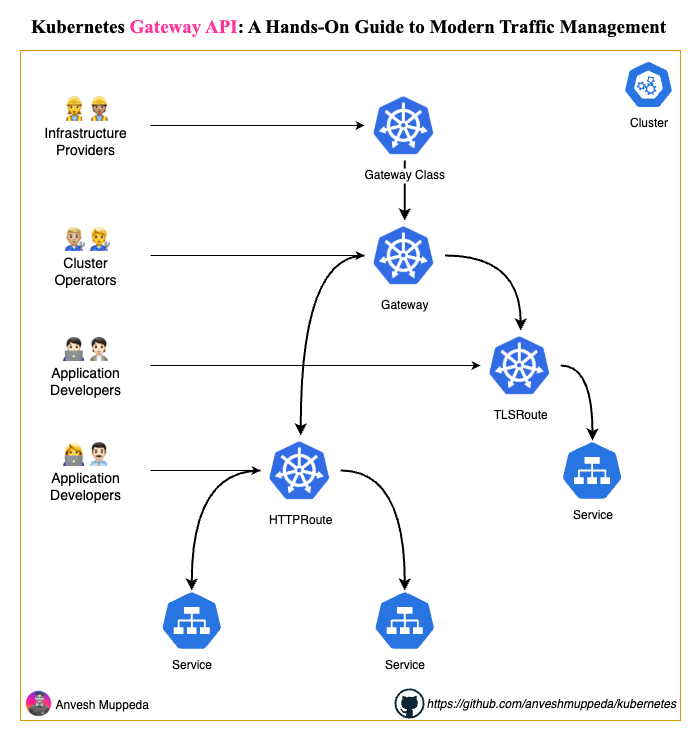

Gateway API Architecture

Step 1: Install Gateway API CRDs​

First, we need to install the Gateway API Custom Resource Definitions (CRDs): Install Standard Channel

# Install Gateway API Standard Channel (GA and Beta resources)
kubectl apply --server-side -f https://github.com/kubernetes-sigs/gateway-api/releases/download/v1.4.0/standard-install.yaml

Verify the installation:

kubectl get crd | grep gateway

Step 2: Deploy the Sample Application​

Let's create a simple web application that we'll use to demonstrate routing capabilities.

Create the Application Container​

Our sample application is a simple HTML page with JavaScript routing:

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Simple Router</title>
</head>
<body>
    <div id="content"></div>
    <script>
        function router() {
            const path = window.location.pathname;
            const content = document.getElementById('content');
            switch(path) {
                case '/':
                    content.textContent = 'Welcome Home page';
                    break;
                case '/cart':
                    content.textContent = 'Welcome Cart page';
                    break;
                case '/billing':
                    content.textContent = 'Welcome Billing page';
                    break;
                case '/status':
                    content.textContent = 'Status: OK';
                    break;
                default:
                    content.textContent = '404 - Page not found';
            }
        }
        window.addEventListener('popstate', router);
        router();
    </script>
</body>
</html>

Deploy the Application​

Create the deployment and service:

# deployment/simple-router-deploy.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: simple-router-app
  labels:
    app: simple-router
spec:
  replicas: 2
  selector:
    matchLabels:
      app: simple-router
  template:
    metadata:
      labels:
        app: simple-router
    spec:
      containers:
      - name: simple-router-container
        image: anvesh35/simple-router:v1.0.0
        ports:
        - containerPort: 80
        resources:
          requests:
            cpu: "100m"
            memory: "128Mi"
          limits:
            cpu: "500m"
            memory: "512Mi"
# deployment/simple-router-svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: simple-router-svc
spec:
  type: ClusterIP
  selector:
    app: simple-router
  ports:
    - protocol: TCP
      port: 80
      targetPort: 80

Apply the resources:

kubectl apply -f deployment/

Step 3: Install Traefik with Gateway API Support​

Traefik will serve as our Gateway Controller. Let's install it with Gateway API features enabled.

Add Traefik Helm Repository​

helm repo add traefik https://traefik.github.io/charts
helm repo update

Configure Traefik Values​

Create a values file to enable Gateway API support:

# traefik/values.yaml
logs:
  access:
    enabled: true

ports:
  web:
    port: 80
  websecure:
    port: 443
    exposedPort: 443

# Enable gateway-api features
providers:
  kubernetesGateway:
    enabled: true
    experimentalChannel: false

# Disable defaults - we'll provide our own
gatewayClass:
  enabled: false

gateway:
  enabled: false

Install Traefik​

helm install traefik traefik/traefik \
  --values traefik/values.yaml \
  --namespace traefik \
  --create-namespace

Verify the installation:

kubectl get pods -n traefik
kubectl get svc -n traefik

Step 4: Create Gateway API Resources​

Now let's create the Gateway API resources that define our traffic management rules.

Create GatewayClass​

The GatewayClass defines which controller will handle our Gateway:

# gateway-class.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: GatewayClass
metadata:
  name: traefik
  labels:
    app.kubernetes.io/name: traefik-gateway
    app.kubernetes.io/component: gateway-class
spec:
  controllerName: traefik.io/gateway-controller

Create Gateway​

The Gateway defines the network entry points:

# gateway.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: Gateway
metadata:
  name: gateway-api
  namespace: default
  labels:
    app.kubernetes.io/name: traefik-gateway
    app.kubernetes.io/component: gateway
spec:
  gatewayClassName: traefik

  listeners:
    - name: http
      protocol: HTTP
      port: 80
      allowedRoutes:
        namespaces:
          from: Same

    - name: https
      protocol: HTTPS
      port: 443
      tls:
        mode: Terminate
        certificateRefs:
          - name: secret-tls
            namespace: default
      allowedRoutes:
        namespaces:
          from: Same

Apply the Gateway resources:

kubectl apply -f gateway-class.yaml
kubectl apply -f gateway.yaml

Verify the Gateway status:

kubectl get gateway
kubectl describe gateway gateway-api

Step 5: Implement Hostname-Based Routing​

Let's create an HTTPRoute that routes traffic based on the hostname:

# http-route-by-hostname.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: simple-router-hostname
  namespace: default
  labels:
    app.kubernetes.io/name: simple-router
    app.kubernetes.io/component: httproute

spec:
  parentRefs:
  - name: gateway-api
    sectionName: http
    kind: Gateway

  hostnames:
  - demo.apigateway.com

  rules:
  - backendRefs:
    - name: simple-router-svc
      port: 80
      weight: 1

Apply and test:

kubectl apply -f http-route-by-hostname.yaml

# Test with curl (replace with your actual gateway IP)
curl -H "Host: demo.apigateway.com" http://<GATEWAY_IP>/

Step 6: Implement Path-Based Routing (Exact Match)​

Create an HTTPRoute that matches exact paths:

# httproute-by-path-exact.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: simple-router-exact
  namespace: default
  labels:
    app.kubernetes.io/name: simple-router
    app.kubernetes.io/component: httproute

spec:
  parentRefs:
  - name: gateway-api
    sectionName: http
    kind: Gateway

  hostnames:
  - demo.apigateway.com

  rules:
  - matches:
    - path:
        type: Exact
        value: /
    backendRefs:
    - name: simple-router-svc
      port: 80
      weight: 1

Apply and test:

kubectl apply -f httproute-by-path-exact.yaml

# Test exact path matching
curl -H "Host: demo.apigateway.com" http://<GATEWAY_IP>/
curl -H "Host: demo.apigateway.com" http://<GATEWAY_IP>/cart  # This should fail

Step 7: Implement URL Rewriting​

Create an HTTPRoute with URL rewriting capabilities:

# httproute-by-path-rewrite.yaml
apiVersion: gateway.networking.k8s.io/v1
kind: HTTPRoute
metadata:
  name: simple-router-rewrite
  namespace: default
  labels:
    app.kubernetes.io/name: simple-router
    app.kubernetes.io/component: httproute

spec:
  parentRefs:
  - name: gateway-api
    sectionName: http
    kind: Gateway

  hostnames:
  - demo.apigateway.com

  rules:
  - matches:
    - path:
        type: PathPrefix
        value: /api/python
    filters:
    - type: URLRewrite
      urlRewrite:
        path:
          type: ReplacePrefixMatch
          replacePrefixMatch: /
    backendRefs:
    - name: simple-router-svc
      port: 80
      weight: 1

Apply and test:

kubectl apply -f httproute-by-path-rewrite.yaml

# Test URL rewriting
curl -H "Host: demo.apigateway.com" http://<GATEWAY_IP>/api/python

Step 8: Configure Local Testing with /etc/hosts​

For testing from your browser, you'll need to configure your local /etc/hosts file to point the domain to your kind cluster.

Get the Gateway External IP​

For kind cluster, get the node IP:

# Get kind cluster node IP
kubectl get nodes -o wide

# Or get the service details
kubectl get svc -n traefik traefik

Update /etc/hosts File​

Edit your /etc/hosts file:

sudo nano /etc/hosts

Add the following line (replace with your actual kind node IP):

127.0.0.1       demo.apigateway.com

Your /etc/hosts file should look like:

##
# Host Database
#
# localhost is used to configure the loopback interface
# when the system is booting.  Do not change this entry.
##
127.0.0.1       demo.apigateway.com
127.0.0.1       localhost
255.255.255.255 broadcasthost
::1             localhost

Port Forward for Local Testing​

Since we're using kind, we need to port-forward the Traefik service:

kubectl port-forward -n traefik svc/traefik 8080:80

Now you can test in your browser:

  • http://demo.apigateway.com:8080/ - Home page
  • http://demo.apigateway.com:8080/cart - Cart page
  • http://demo.apigateway.com:8080/billing - Billing page
  • http://demo.apigateway.com:8080/api/python - URL rewrite test

Browser Testing Screenshots​

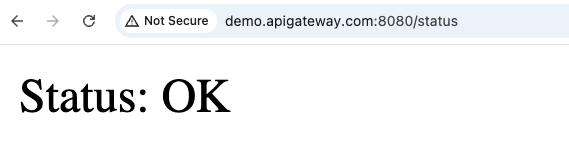

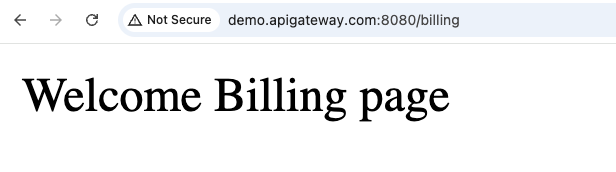

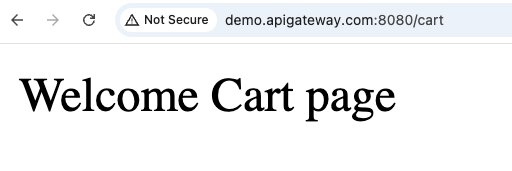

Home Page Cart Page Billing Page Status Page

Step 9: Testing and Verification​

Test Different Routing Scenarios​

# Test hostname routing
curl -H "Host: demo.apigateway.com" http://localhost:8080/

# Test path-based routing
curl -H "Host: demo.apigateway.com" http://localhost:8080/cart

# Test URL rewriting
curl -H "Host: demo.apigateway.com" http://localhost:8080/api/python

Monitor Traffic​

Check Traefik logs to see routing decisions:

kubectl logs -n traefik deployment/traefik -f

Step 10: Advanced Configuration​

Multiple Backend Services​

You can route to multiple services with traffic splitting:

rules:
- backendRefs:
  - name: simple-router-svc-v1
    port: 80
    weight: 80
  - name: simple-router-svc-v2
    port: 80
    weight: 20

Header-Based Routing​

Route based on HTTP headers:

rules:
- matches:
  - headers:
    - name: "X-Version"
      value: "v2"
  backendRefs:
  - name: simple-router-svc-v2
    port: 80

Troubleshooting​

Common Issues and Solutions​

  1. Gateway not ready

    kubectl describe gateway gateway-api
    # Check events and conditions

  2. HTTPRoute not working

    kubectl describe httproute simple-router-hostname
    # Verify parentRefs and backend services

  3. Traefik not receiving traffic

    kubectl get svc -n traefik
    # Ensure service is properly exposed

Cleanup​

Remove all resources:

kubectl delete -f httproute-by-path-rewrite.yaml
kubectl delete -f httproute-by-path-exact.yaml
kubectl delete -f http-route-by-hostname.yaml
kubectl delete -f gateway.yaml
kubectl delete -f gateway-class.yaml
kubectl delete -f deployment/
helm uninstall traefik -n traefik
kubectl delete namespace traefik

Key Takeaways​

  1. Gateway API vs Ingress: Gateway API provides more expressive and role-oriented traffic management
  2. Resource Hierarchy: GatewayClass → Gateway → HTTPRoute creates a clear separation of concerns
  3. Flexible Routing: Support for hostname, path, header, and query parameter-based routing
  4. Traffic Management: Built-in support for traffic splitting, URL rewriting, and filtering
  5. Controller Agnostic: Works with multiple ingress controllers (Traefik, Istio, Envoy Gateway, etc.)

What's Next?​

  • Explore HTTPS/TLS termination with Gateway API
  • Implement advanced traffic policies (rate limiting, authentication)
  • Set up cross-namespace routing with ReferenceGrant
  • Integrate with service mesh for advanced traffic management

References​

Author: Anvesh Muppeda | Repository: kubernetes

If you found this guide helpful, please ⭐ star the repository and share it with your network!
